Factory-direct configuration
Fuel, voltage, color and production setup are confirmed for your destination and workflow.
YS Series · Cast Iron · 2026 Catalogue

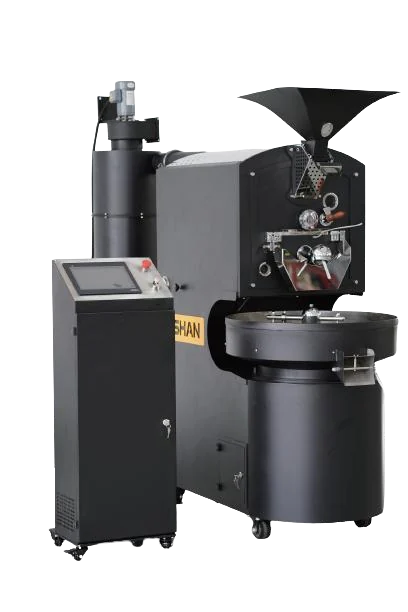

YS-6KG
Cast-iron commercial roaster with Siemens touchscreen control and dual thermocouples.
Cast Iron Series
Drum MaterialCast iron
Control PanelSiemens touchscreen
ColorsBlack, white, red, blue, yellow or custom
VoltageAC 220–240V 50/60Hz for gas; 380V three-phase for electric
Catalogue Specifications
Technical details.
Specifications below are taken from the YOSHAN Coffee Roaster Catalogue 2026. Project utilities and custom configurations are confirmed before production.
Drum MaterialCast iron
Control PanelSiemens touchscreen
ColorsBlack, white, red, blue, yellow or custom
VoltageAC 220–240V 50/60Hz for gas; 380V three-phase for electric
Heating MethodLPG, natural gas or electric
Gas Type Power1070W
Batch Capacity1–7 kg/batch
Roasting MethodSemi-hot blast and half direct fire
Roast Cycle12–15 minutes/drum
Cooling Time1–2 minutes
LNG Consumption1.9 m³/hour
LPG Consumption0.68 m³/hour
Machine Size2151 × 720 × 2000 mm
Net Weight600 kg
Factory Configured
Built around your project.
Export-ready delivery
Machines are inspected and prepared for international packing, shipment and installation support.
Technical service
Yoshan provides commissioning guidance, operating support and spare-parts coordination.
Same Product Family
Compare related models.
YS Series · Cast Iron
YS-12KG
Cast-iron commercial roaster with Siemens touchscreen control and dual thermocouples.
VIEW MODEL & SPECS →
YS Series · Cast Iron

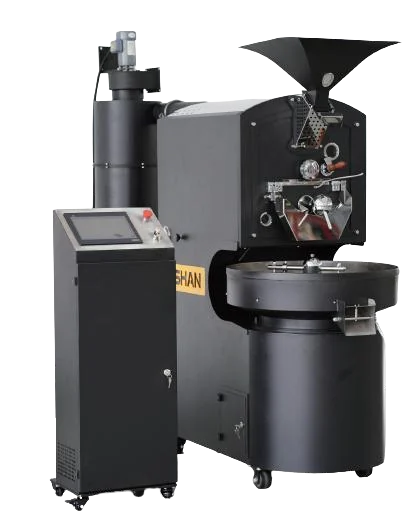

YS-15KG
Cast-iron commercial roaster with Siemens touchscreen control and dual thermocouples.
VIEW MODEL & SPECS →
SD Series
SD-100G Plus
Compact gas sample roaster for green-coffee evaluation and controlled profile development.
VIEW MODEL & SPECS →Configure your YS-6KG.
Send your voltage, fuel, destination and target output for a factory quotation.
