Factory-direct configuration
Fuel, voltage, color and production setup are confirmed for your destination and workflow.
SD Series · 2026 Catalogue

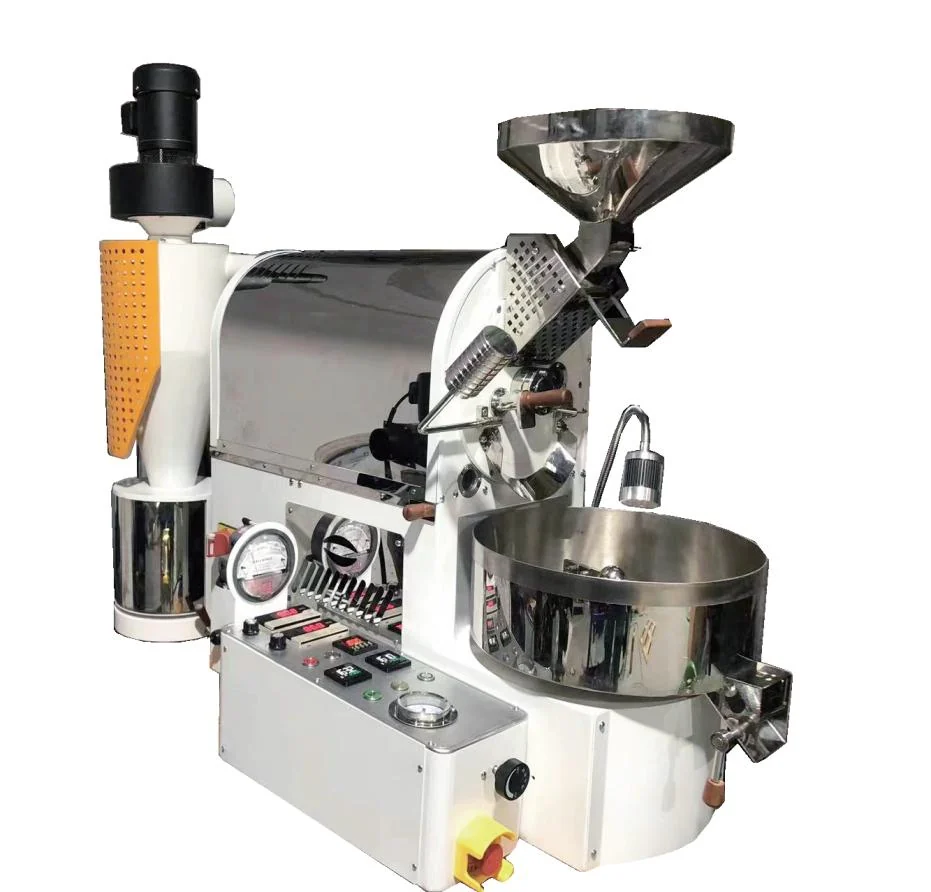

SD-3KG
Three-kilogram cast-iron shop roaster designed for repeatable specialty production.
Catalogue 2026
Drum MaterialCast iron
Batch Capacity2–3 kg/batch
Roast Time10–15 minutes/drum after preheating at 180°C
Cooling Time1–2 minutes
Catalogue Specifications
Technical details.
Specifications below are taken from the YOSHAN Coffee Roaster Catalogue 2026. Project utilities and custom configurations are confirmed before production.
Drum MaterialCast iron
Batch Capacity2–3 kg/batch
Roast Time10–15 minutes/drum after preheating at 180°C
Cooling Time1–2 minutes
Roast Output8–12 kg/hour
Roasting TypeSemi-hot air and half direct fire
Heating TypeGas
VoltageAC 220V 50Hz
Machine Size2200 × 1300 × 2000 mm
Machine Weight230 kg
Package Size1400 × 960 × 1520 mm
Gross Weight414 kg
PackagePlastic film and wooden case
Factory Configured
Built around your project.
Export-ready delivery
Machines are inspected and prepared for international packing, shipment and installation support.
Technical service
Yoshan provides commissioning guidance, operating support and spare-parts coordination.
