Factory-direct configuration
Fuel, voltage, color and production setup are confirmed for your destination and workflow.
EC Series · 2026 Catalogue

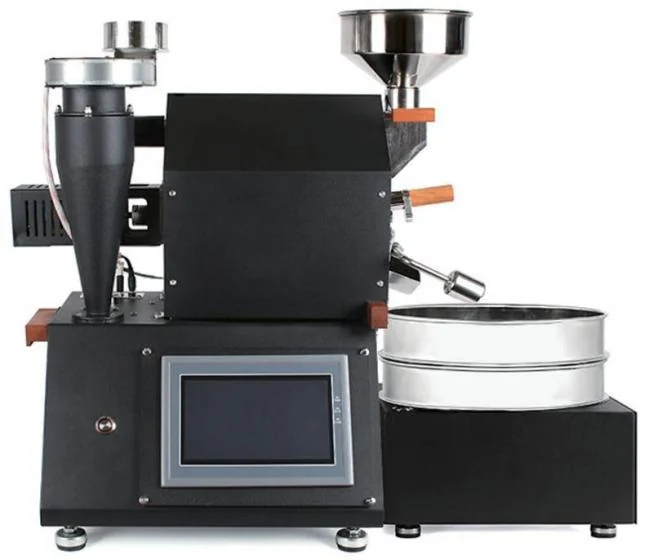

EC-500G
All-electric sample roaster with touchscreen control and integrated data logger.
Electric Sample Roaster
Drum Material304 food-grade stainless steel
VoltageAC 220–240V 50/60Hz
Heating MethodCompletely electric
Control SystemTouchscreen panel with data logger
Catalogue Specifications
Technical details.
Specifications below are taken from the YOSHAN Coffee Roaster Catalogue 2026. Project utilities and custom configurations are confirmed before production.
Drum Material304 food-grade stainless steel
VoltageAC 220–240V 50/60Hz
Heating MethodCompletely electric
Control SystemTouchscreen panel with data logger
Heating Power2.4 kW
Total Power2.5 kW
Batch Capacity200–500 g (600 g maximum)
Roast Cycle5–20 minutes/drum
Cooling Time1–2 minutes
Machine Size500 × 300 × 580 mm
Cooling Tray260 × 230 × 230 mm
Net Weight33 kg including chaff cyclone and cooling tray
Body ColorMatte black
LogoOEM
Factory Configured
Built around your project.
Export-ready delivery
Machines are inspected and prepared for international packing, shipment and installation support.
Technical service
Yoshan provides commissioning guidance, operating support and spare-parts coordination.
Same Product Family
Compare related models.
SD Series
SD-100G Plus
Compact gas sample roaster for green-coffee evaluation and controlled profile development.
VIEW MODEL & SPECS →
SD Series

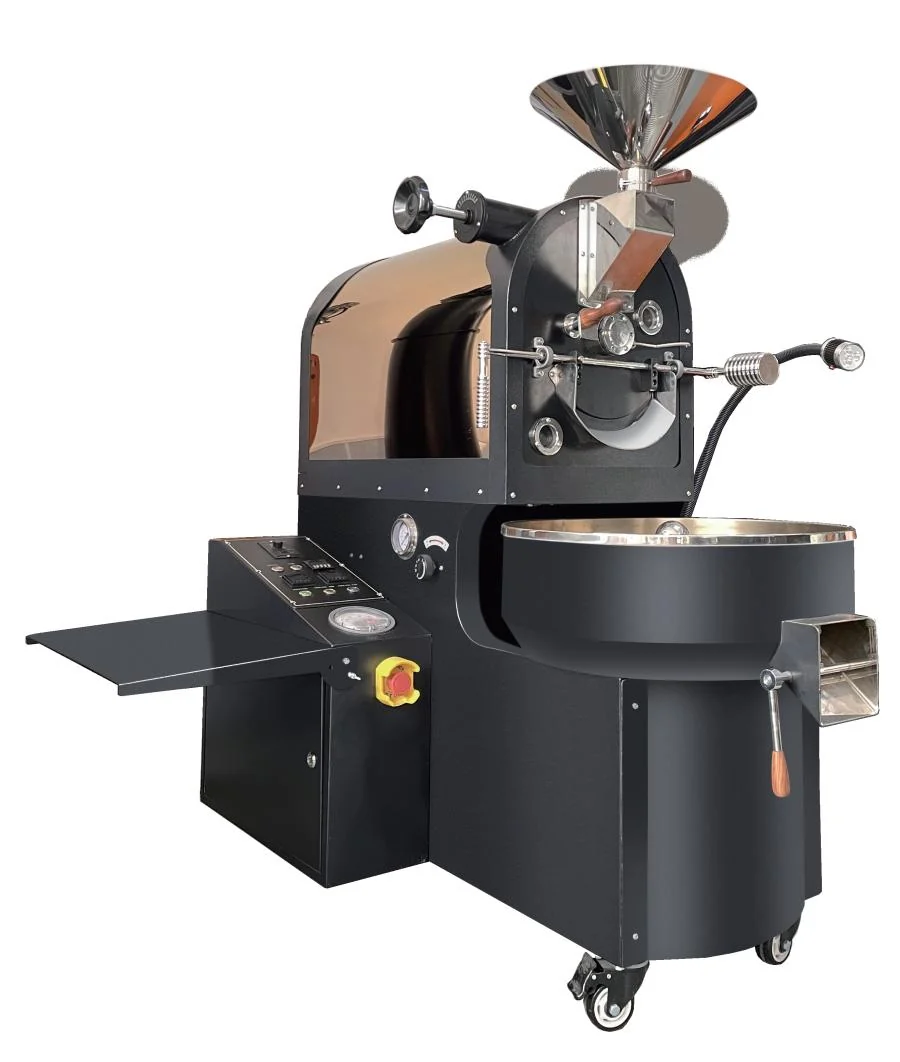

SD-1.5KG
Cast-iron commercial roaster using semi-hot-air and half direct-fire roasting.
VIEW MODEL & SPECS →
SD Pro Series
SD-1.5 Pro
Fully automatic 1.5 kg roaster with PLC touchscreen control and cast-iron drum.
VIEW MODEL & SPECS →Configure your EC-500G.
Send your voltage, fuel, destination and target output for a factory quotation.
